VENTUS - Modular air handling units
VENTUS - Modular air handling units

The VENTUS VVS modular air handling units are units with, wide and universal applications, characterised by the possibility of individual configuration tailored to the needs and preferences of the customer.

The units are selected using the ClimaCAD OnLine software, certified by Eurovent.

  • Capacity: from 1100 m3/h to 100,000 m3/h
  • Energy recovery: up to 92% recovery efficiency
  • Placing: floor-mounted units

VENTUS - Modular air handling units 1 VENTUS - Modular air handling units 2 VENTUS - Modular air handling units 3 VENTUS - Modular air handling units 4 VENTUS - Modular air handling units 5
VENTUS - Eurovent
VENTUS - ISO 9001 14001

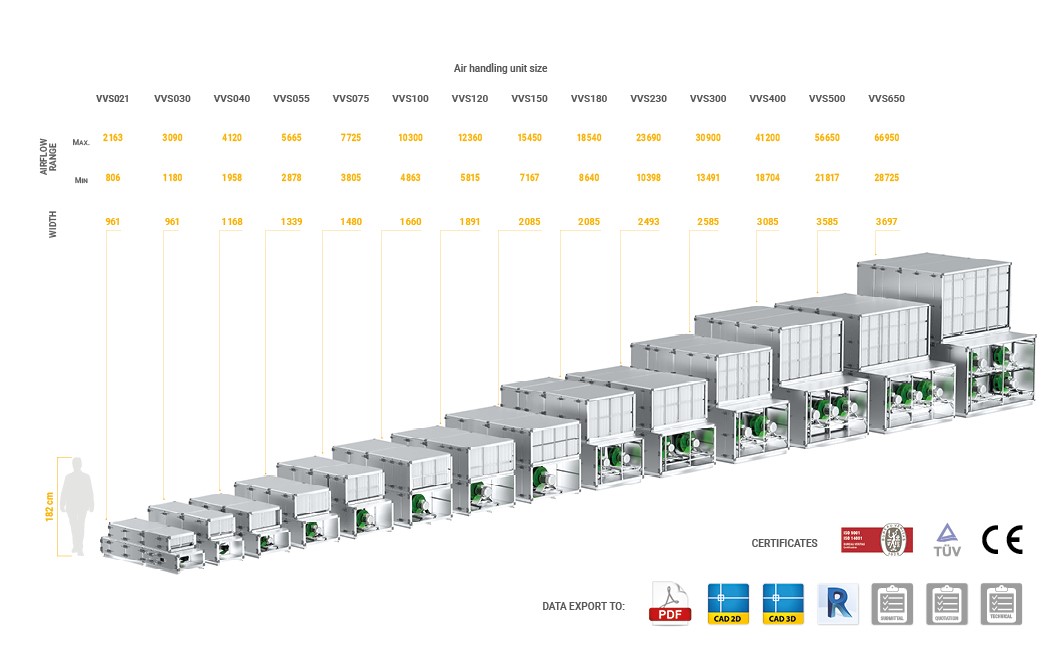

Unit size


The VENTUS VVS modular air handling units are made of polyurethane panels covered with Aluzinc coated sheet metal (AZ 150) mounted on an internal skeleton made of metal profiles.

The VENTUS VVS units have an extensive sealing system, among others, sealing fins ensuring labyrinth sealing, a thermal insert that allows to break the thermal bridge, as well as a roofing system.

Casing lining - Aluzinc coated sheet (AZ150)
Rigid, durable casing structure.
Low thermal and UV radiation absorption.
High resistance to weather conditions.
Ergonomic closing system.
Aesthetic, comfortable and ergonomic handles, ensuring tightness of the closure of the inspection panel
Fan section cage
Increased longitudinal stiffness of the structure.
Steel frame
High profile resistance to deformation.
Aluminium structural posts with an additional sealing fin and a thermal break
Casing with broken thermal bridges as standard - ensures no condensation on the unit components.

The fin at the perimeter of the inspection panel provides labyrinth sealing - currently the most effective solution on the market, mainly used in laboratory equipment.

The solution consisting in the use of a symmetrical channel cut filled with sealant, which ensures 100% tightness at the connection of the post with the casing structure.

Energy efficiency

The VENTUS VVS modular air handling units meet the highest energy-efficiency requirements.

The devices can be equipped with various heat recovery options:

  • rotary heat wheel,
  • counter-flow hexagonal recuperator,
  • cross-flow plate heat recuperator
  • glycol system.

The maximum recovery efficiency reaches 92%.

Units with a capacity of up to 3000 m3/h are equipped with energy-saving EC motors as standard.

All units are available with multi-functional controls that performs advanced energy-saving functions based on measurements of air quality parameters.

Energy recovery
Depending on the configuration, energy recovery can be achieved by:
- high-efficiency rotary heat exchanger with EC motor.
- high-efficiency cross and hexagonal recuperators.
- glycol system.
EC motor
Energy-efficient IE4 EC motors are available in units with a capacity of up to 3000 m3/h.


Controls in the VENTUS VVS air handling units regulates all utility parameters and functions of energy optimisation based on the measurement of air quality parameters.

Visualisation or a remote HMI Advance desktop, which enables remote control of the unit, are available as standard.

Visualization on control panel
VTS Factory visualisation enables monitoring as well as remote control of the unit operation.
Controls in VENTUS VVS units is based on the uPC3 controller.
Selection software
ClimaCAD OnLine 4 (CCOL4) - a software for selecting air handling and conditioning units certified by Eurovent.
VENTUS - VENTUS, Modular air handling units, Selection software

ClimaCAD OnLine 4 (CCOL4) is a proprietary VTS device selection software. The software uses the latest technologies and programming platforms. The system is available from anywhere in the world, any device with a web browser and access to the Internet is sufficient.

The software includes both modules for optimal device selection in terms of parameters and costs as well as innovative generators of Revit objects or 2D and 3D dwg files. The generators ensure immediate availability of .rfa and .dwg files for any device configuration. The system offers the ability to automatically generate descriptive and parametric technical specifications of selected devices. Full device parameters are available in .pdf, .html as well as .rfa files.

Unlimited number of configurations
Friendly user interface
Easy and simple selection
Integration with CRM, ERP, WMA systems
